Description

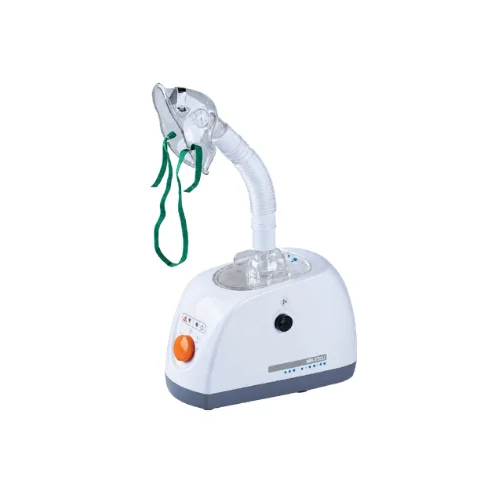

NEB-1 Nebulizer
Is a clinical-grade desktop ultrasonic nebulizer engineered to deliver premium respiratory therapy in the comfort of your
home. Utilizing advanced high-frequency ultrasonic vibration technology, the Neb-1 rapidly transforms liquid medication into a micro-fine, easily inhalable mist.
Dual-Knob Precision Controls: Features independent dials to fine-tune both the mist atomization rate and the airflow delivery speed, providing a highly customized comfort profile for every patient.
Intelligent Dry-Run Protection: Equipped with an automatic water level detection sensor that
instantly shuts the system down if the water chamber runs dry, safeguarding the internal ultrasonic
transducer.
Ultra-Quiet Acoustic Chassis: Engineered with an advanced low-vibration housing (≤55 dB) to
ensure peaceful, stress-free treatments, making it ideal for young children and nighttime use.
High-Volume Inhalation Delivery: Uses high-frequency mechanical energy to create deep-reaching
particles, optimizing treatment eficiency for the lower respiratory tract.
| Specification | Details |
|---|---|
| Ultrasonic Operating Frequency | 1.7 MHz |
| Max Atomization (Nebulizing) Rate | ≥ 2.0 ml/min |
| Particle Size Range (MMAD) | ≈ 5.0 μm |
| Medication Cup Chamber Capacity | 12 ml maximum volume |
| Power Consumption Rate | 40VA |
| Electrical Input Voltage | 220–240V AC ~ 50/60 Hz (110V US-variant configurations available upon request) |
| Net Chassis Weight | 1.4 kg (excluding accessories) |
| Physical System Dimensions | 245 mm × 100 mm × 190 mm |
