Description
Large Internal Memory
Saves 480 hours of general trends, 2 hours of short-term charts, 10,000 blood pressure measurements, and 2,000 alert events. It also stores 48 hours of continuous wave data.
Add-On Modules
Features slots to plug in advanced tools like Masimo SET® oxygen sensors (works accurately during patient movement), anesthesia depth monitors (BIS), brain activity readers (EEG), and gas analyzers.
Flexible Screen Layouts
Easily change the display view to show large numbers, respiratory charts (OxyCRG), trend data, or full-screen heart graphs.

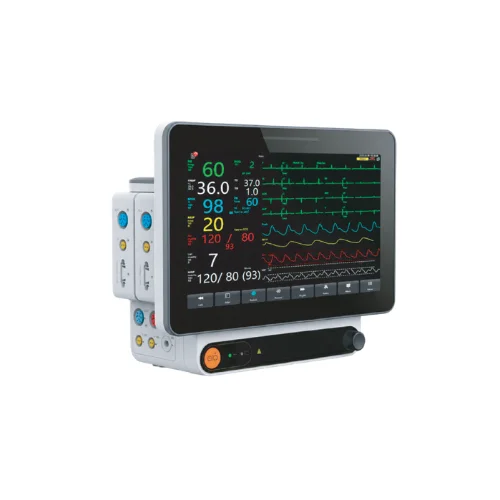

Large Touchscreen
Large 15.6-inch flat touchscreen that displays up to 10 video channels (waveforms) at the same time. Perfect for ICU, CCU, and neonatal (NICU) departments.
Heart Diagnostics
Built-in tools for full 12-lead ECG checks, pacemaker detection, and automated heart rhythm (arrhythmia) alerts.
Connectivity & IT Integration
- Integrated Wi-Fi module
- HL7 protocol support for HIS
- HDMI support for external display
Multiple interface display
Central Monitoring System
Up to 64 beds, Network is compatible to wired or wireless CMS, Auto adaptable to different screen resolution
TECHNICAL SPECIFICATIONS
| Category | Details |
|---|---|
| Screen Size | 15.6-inch high-resolution touchscreen with color-coded charts for easy reading |
| Wireless & Network | Built-in Wi-Fi with automatic IP address setup (DHCP) |
| Central System Link | Connects by cable or Wi-Fi to a central station to monitor up to 64 beds at once |
| Hospital IT Integration | Uses standard HL7 data format to send patient files directly to the hospital computer network |
| Video Output | 1 × HDMI port to copy the screen image onto a larger external wall monitor |
| Power Supply | Standard wall outlet plug (AC) with a built-in rechargeable Lithium-Ion backup battery |
| Remote Viewing | Allows doctors to check the data of patients in other beds right from this monitor screen |
Measurement Accessories
Optional
3/5-lead, ECG, SpO2, NIBP, TEMP, Resp, PR, Li-ion battery, 12-Lead ECG, Masimo SpO2, IBP, C.O., EtCO2, AG, BIS, EEG,NMT; Thermal Recorder, Wired/Wireless CMS
C.O. Cardiac Output
Bispectrial IndexTM
IBP
Masimo Gas Technology
