Description
Modular & Optional Functions
- Masimo / Nellcor SpO2 modules
- BISx module — Optional
- NMT module — Optional
- ICG module
Bedside Calculations
- Hemodynamic calculations
- Drug dosing calculations
- Oxygenation calculations
- Ventilation calculations
Data & Trend Review
- Graphical & tabular trend review up to 480 hours
- Built-in storage
- 48-hour full-disclosure waveform review
- Wired/Wireless CMS connectivity
Clinical Monitoring

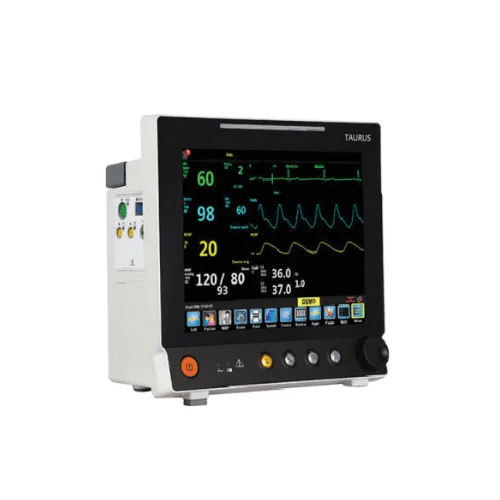

- 12.1” color TFT flat touchscreen
- Displays up to 10 waveforms simultaneously
- Color-coded functions for each parameter & waveform
- Designed for ICU, CCU, & NICU environments
ECG & Clinical Analysis
- 12-lead ECG analysis
- ST and arrhythmia analysis & logging
- OxyCRG monitoring
- Built-in MEWS automation
Connectivity & IT Integration
- Integrated Wi-Fi module
- HL7 protocol support for HIS
- HDMI support for external display
Multiple interface display
Central Monitoring System
Up to 64 beds, Network is compatible to wired or wireless CMS, Auto adaptable to different screen resolution
TECHNICAL SPECIFICATIONS
| Category | Details |
|---|---|
| Physical Dimensions | 310 × 285 × 166 mm (L × W × T) |
| System Weight | Under 10 kg (standard baseline configuration) |
| Display Panel | 12.1-inch color TFT flat-screen LCD with integrated touch interface |
| Screen Resolution | 800 x 600 pixels native (High-density 1024 x 768 pixel option available) |
| Network Interfaces | 1 × RJ45 LAN Ethernet port | Built-in Wi-Fi (IEEE 802.11b/g/n WLAN) |
| Hardware I/O Ports | 2 × USB connector interfaces | 1 × HDMI external video output port |
| Analog Interfaces | Dedicated auxiliary outputs for Nurse Call systems and Defibrillator Synchronization |
| Electrical Input | Universal AC 100–250V, 50/60Hz automated power supply line |
| Energy Storage | Internal rechargeable Lithium-Ion (Li-ion) battery for emergency backup power |
Measurement Accessories
Optional
3/5-lead, ECG, SpO2, NIBP, TEMP, Resp, PR, Li-ion battery, 12-Lead ECG, Masimo SpO2, IBP, C.O., EtCO2, AG, BIS, EEG,NMT; Thermal Recorder, Wired/Wireless CMS
C.O. Cardiac Output
Bispectrial IndexTM
IBP
Masimo Gas Technology
