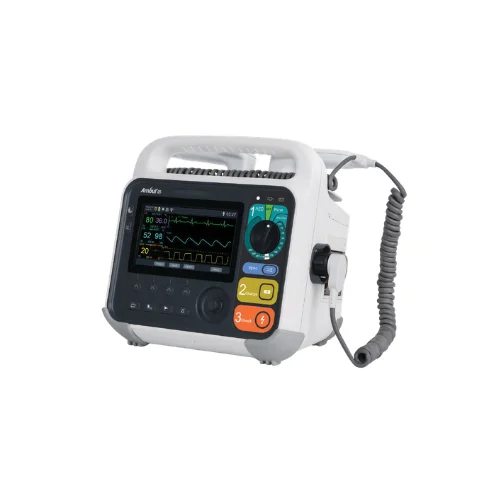

Description
Patient types
Adults, Pediatrics, Neonates
Portable
Compact, lightweight at about 5.2 kg，easy to carry with one hand
EtCO2 monitoring
Mainstream CO2 module for real-time measurement
CPR mode
Visual and audio CPR guidance conform to the latest AHA and ERC guidelines
TECHNICAL SPECIFICATIONS
| General | Description |
|---|---|
| Size | 320 × 200 × 120 mm |
| Weight | 5.2 kg |
| Power sources | AC:100-240V,50/60 Hz; Battery: rechargeable lithium-ion battery pack |
| Defibrillator | Description |
| Waveform | Biphasic truncated exponential waveform (BTE) with impedance compensation |
| Impedance range | 25 Ω ~ 200 Ω (External defibrillation) |
| Energy selections | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 100, 150, 170, 200, 300, and 360J |
| Charge time | Reach 200 J in less than 5 seconds with a new, fully charged battery; Reach 360 J in less than 8 seconds with a new, fully charged battery |
| Modes | Manual mode: asynchronous and synchronous defibrillation; AED mode |
| Non-Invasive Pacing | Description |
| Modes | Fixed and on-demand mode |
| Waveform | Monophasic square wave pulse |
| Pulse | Rate: 40ppm ~ 170ppm ±1.5%; Current: 0mA~200mA ±5% or ±5mA, whichever is greater. |
| Monitoring | Description |
| Monitoring parameters | Three curves, 5/12-Lead ECG, SpO2, non-invasive blood pressure, respiration, EtCO2 (OPTIONAL), temperature (T1 & T2), and events. |
| Network solution | Description |
| Standards | WIFI, USB and 4G (i6 Plus only) |
Complete Clinical Flexibility
The seamlessly integrates four operational modes, providing
a versatile solution tailored to the diverse needs of both
in-hospital clinical settings and pre-hospital emergency
scenarios.
AED Mode
Non-invasive pacing Mode
Manual De brillation Mode
Multi-Parameter Monitorin Mode
Measurement accessories
Internal defibrillation paddles
NIBP Cuffs
EtCO2
External paddle
External paddle
EtCO2
