Description

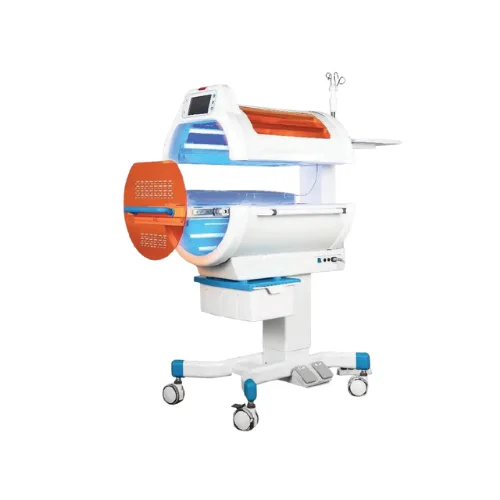

Phoenix 360
- Double sides for more effective radiation 360°
- Small in size, light and high irradiation
- Air temperature and skin temperature separately display
| PRODUCT MODEL | PHOENIX 360D |
| light source | LED (Light Emitting Diode) |
| Max irradiance of upper phototherapy | 3600μw/cm² |
| Max irradiance under phototherapy | 3200μw/cm² |
| Irradiation intensity | Selectable on 33%, 66%, 100% Three level light source intensity |
| Uniformity of total irradiance | >0.4 |
| LED lighting | ≥1700Lux |
| Input power | ≤250VA |
| effective wavelength | 400nm ~ 550nm |
| Irradiation effective area | 400mm×250mm |
| Max opening width of baby cabin | 0 ~ 30cm |
| Display range of cumulative usage time | 0 ~ 49999 h 59 m |
| Current treatment time display range | 0 ~ 99 h 59 m |
| Treatment time setting range | 0 ~ 99 h 59 m, Point to point sound and light prompt |
| Bed pulled out and treatment suspended | Bed pulled out and treatment suspended |
| Lift stroke range | 0 ~ 200mm |
| Skin temperature display range | 5 ~ 65°C |
| Upper limit range of skin temp alarm | 33 ~ 38.5°C |
| Upper limit range of box temp alarm | 16 ~ 42°C |
| Working power supply | AC100 ~ 240V |
| Alarm sound pressure level adjustment | 25%, 50%, 75%, 100% |
| End of treatment reminder | End of treatment with voice and text reminders |
- Adopting a soft and breathable mesh mattress, making patients more comfortable to receive treatment. - The crib adopts a strong load-bearing, damping, and silent self-suction slide rail, making the equipment safer and more comfortable to use, and the operation easier. - When the crib is pulled out, treatment is suspended, which can effectively avoid blue light pollution.
- The controller adopts a 7-inch color touch screen, which can centrally control multiple functions of the device, making it easy to operate. - The main interface will simultaneously display information such as patient skin temperature, box temperature, baby compartment opening width, irradiation intensity output ratio, treatment time, set time, cumulative time, up and down phototherapy switch status, fan on and off status, alarm text, etc. - The interface is simple, novel, easy to operate, and ergonomic. - According to clinical needs, only upper and lower phototherapy can be activated, or both can be activated simultaneously. - Has the function of pausing treatment (pausing timing).
- Figure 1: Click on the icons for setting box temperature, skin temperature, irradiance ratio or time, and the above screen will pop up. You can set the parameters by pressing the buttons at the bottom. - Click on the alarm log button at the bottom of Figure 1 to view the alarm log screen shown in Figure 2.
