Description

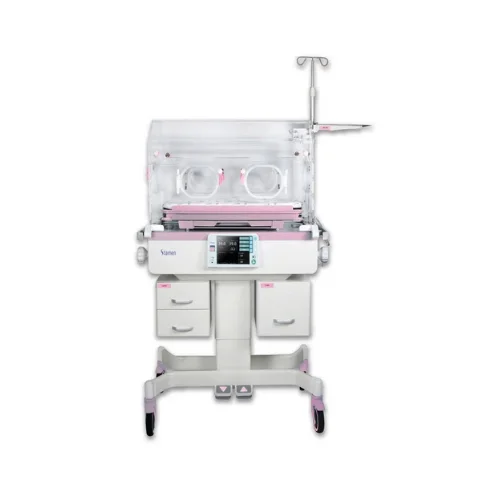

HORNIBILL 600
For every precious baby welcomed into the world, it is everyone’s mission to send them home as safe, healthy, and fast as possible. It is our job to help create controlled, protected neonatal environments for peaceful, fast healing. Incubators are designed to create a healing environment, combining state-of-the-art technology, innovative design, and exceptional thermal performance to help newborns thrive.
Promote a healthy, nurturing connection between babies and their families, allowing parents to feel comfortable and easily access their babies and family-friendly information about their babies’ progress. Offers clinicians enhanced visibility, trending, and interaction with their baby with integrated features.
Stamen® monitors hood, radiator, and circuit air temperature with collective information from each part. Stamen’s temperature control stands out for being more accurate and safe.
The advanced double protection system, featuring both a thermocouple and mechanical temperature switch, protects the heating system together with the evaporator. The thermocouple reads real-time temperature and maintains it within a safe range through feedback to the control module.
The air circuit system in the incubators of the Stamen® series was created after extensive testing. To provide infants with the safest microenvironment, extensive aerodynamic expertise is used to improve temperature uniformity as much as feasible.
LARGE DISPLAY 8 INCH
Stamen® monitors not only hood air temperature but also radiator and circuit air temperature by collecting information from each part's temperature information. Hornbill 600's temperature control system is more accurate and safer.
TEMPERATURE UNIFORMITY
Hornbill 600 series incubator's air circuit system is designed based on massive experimentation. With plenty of aerodynamic design, temperature uniformity is improved as much as possible to provide infants with the safest microenvironment. With the help of the latest PID technology, Hornbill-600 minimizes temperature variability to unprecedented levels of ±0.2 °C, and temperature overshoot is also reduced dramatically.
- Transparent acrylic hood produced from food-grade acrylic. - Front and back access panel design. - 6 access doors and 10 tubing ports. - Stamen Infant Incubator humanized design of the acrylic hood. - Double-wall design acrylic hood. - Large dimension design (848 × 442 × 510 mm), which could even ensure a suitable space for twins.
Low-noise operation:
Noise and motor speed can be adjusted using the incubator software.
DOUBLE WALL DESIGN
Reduce heat exchange between the internal and external environment, improve temperature variability (less than 0.2°C), and temperature control accuracy. Reduce the noise level inside the incubator, creating a more comfortable environment for babies.
AIR CURTAIN DESIGN
When the sensor detects the access panel opening, the motor (for air circulation) speed will be increased to generate an air curtain to avoid the incubator temperature dramatically dropping due to heat loss to the outside environment.
