Description

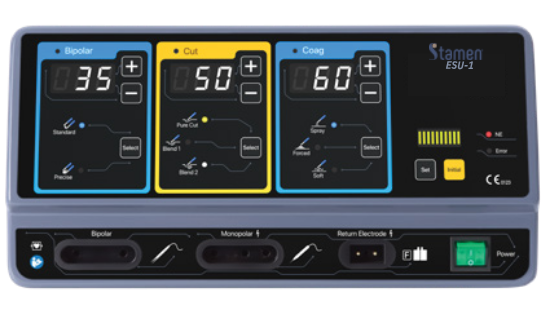

Electrosurgical Unit ESU-1
| Mode Split | Output Function | Max Output Power (W) | Load Impedance (Ω) | Modulation Freq (kHz) | Max Output Voltage (Vp) | Crest Factor |
|---|---|---|---|---|---|---|
| Monopolar Cut | Pure Cut | 200 | 500 | -- | 1300 | 1.8 |
| Monopolar Cut | Blend 1 | 200 | 500 | 20 | 1400 | 2.0 |
| Monopolar Cut | Blend 2 | 150 | 500 | 20 | 1300 | 2.0 |
| Monopolar Coag | Spray | 120 | 500 | 12-24 | 4800 | 6.3 |
| Monopolar Coag | Forced | 120 | 500 | 25 | 4800 | 6.2 |
| Monopolar Coag | Soft | 120 | 500 | 20 | 1000 | 2.0 |
| Bipolar | Standard | 100 | 100 | 20 | 700 | 1.9 |
| Bipolar | Fine | 50 | 100 | 20 | 400 | 1.9 |
Main Features
Precision Coagulation
Select Spray, Forced, or Soft modes for optimized thermal
bleeding control.
Advanced Monopolar Cutting
Switch between Pure, Blend 1, and Blend 2 settings for custom
tissue dissection.
Intermittent Cycle Design
Maintains total electrical stability during cyclical, pulsed
surgical intervals.
Dual Bipolar Channels
Standard and Precise outputs engineered for delicate, localized
procedures.
Rapid Interface Calibration
Quick-response controls for high-precision tuning of power and
audio levels.
Smart Parameter Memory
Instantly recalls your last-used modes, power levels, and settings
upon startup.
Dual Control Options
Seamlessly switch operation between hand-controlled surgical
pens and foot pedals.
Active CQM Safeguard
Continuously monitors patient return electrode integrity to
prevent burn risks.
Measurement Accessories
Optional
3/5-lead, ECG, SpO2, NIBP, TEMP, Resp, PR, Li-ion battery, 12-Lead ECG, Masimo SpO2, IBP, C.O., EtCO2, AG, BIS, EEG,NMT; Thermal Recorder, Wired/Wireless CMS

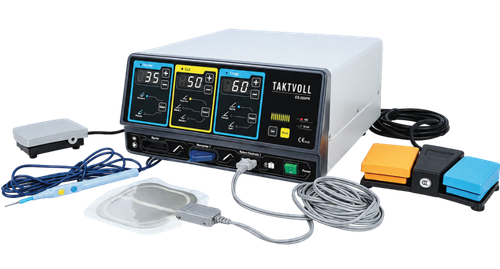

Electrosurgical Unit
Monopolar Foot-Switch
Bipolar Foot-Switch
Hand-Switch Pencil, Disposable
Plastic and Aesthetic Surgery / Dermatology / Oral / Maxillofacial Surgery
Patient Return Electrode Without Cable, Split, for Adult, Disposable
Bipolar Forceps, Reusable, Connecting Cable
Bipolar Forceps, Reusable, Connecting Cable
Ordering Information
