Description

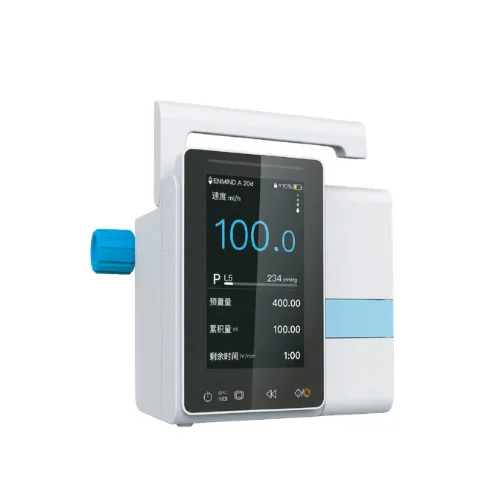

Infusion Pump
IP-1
| Category | Technical Details |
|---|---|
| Infusion Modes | 5 modes + Micro mode (includes Rate mode, Time mode, Body weight, Drip, Sequence, and Drug Library). |
| Flow Rate Range | 0.1 to 2000 ml/h with a minimum increment of 0.01 ml/h. |
| Accuracy | ±5%. |
| Volume To Be Infused (VTBI) | 0 to 9999.99 ml. |
| Keep Vein Open (KVO) Rate | 0 to 5 ml/h adjustable. |
| Bolus Rate | 1 to 2000 ml/h (automatic and manual options). |
| Occlusion Level | 5 selectable levels ranging from 50 mmHg to 900 mmHg. |
| Bubble Detector | Adjustable detection for single bubbles and accumulated bubbles over 15 minutes. |
| Drug Library & Logs | Stores no less than 2000 drug names. Keeps more than 5000 entries in the history record. |
| Power Supply | AC 100V–240V (50/60Hz) or External DC 10-16V. |
| Waterproof Rating | IP44. |
| Dimensions & Weight | 138 mm (L) × 131.5 mm (W) × 90 mm (H). Approximately 1.5 kg including the pole clamp. |
| Safety Alarms |
VTBI Infused / VTBI Near End • Occlusion / Pressure Drop • Battery Empty / Battery Near Empty • Door Open / Air Bubbles • Abnormal Drip Rate / Empty Drip Chamber • System Error / No Power Supply |
Smart Connectivity
Compatible with central management system, data can be managed synchronously.
Features
Long Battery Life
Internal Lithium Polymer battery provides over 10 hours of operating time.
Intuitive Touch Screen
4.3-inch color LCD touch screen allows direct parameter setting and editing.
Smart Safety Systems
Features a Drug Error Reduction system (DERS), Anti-Bolus pressure drop, and Dynamic Pressure System (DPS) for real-time pressure monitoring.
Universal IV Compatibility
Works with any standard IV sets and stores up to 200 editable brands.
Non-Stop Adjustments
Reset flow rate (Titration), volume, air level, and occlusion level without stopping the infusion.
Small and Portable
Easy to move and carry without the use of other tools
Compact and Smart
Optional Heater
