Description
Electrosurgical Unit ESU-1
| Mode | Output Function | Max Output Power(W) | Load Impedance(Ω) | Modulation Frequency (kHz) | Max Output Voltage (V) | Crest Factor |
|---|---|---|---|---|---|---|
| Monopolar Cut | Pure Cut | 300 | 500 | -- | 1300 | 1.8 |
| Monopolar Cut | Blend 1 | 250 | 500 | 20 | 1400 | 2.0 |
| Monopolar Cut | Blend 2 | 200 | 500 | 20 | 1300 | 2.0 |
| Monopolar Cut | Blend 3 | 150 | 500 | 20 | 1300 | 1.9 |
| Monopolar Coag | Spray | 120 | 500 | 12-24 | 4800 | 6.3 |
| Monopolar Coag | Forced | 120 | 500 | 25 | 4800 | 6.2 |
| Monopolar Coag | Soft | 120 | 500 | 20 | 1000 | 2.0 |
| Bipolar | Vessel Sealing | 150 | 100 | 20 | 700 | 1.9 |
| Bipolar | Standard | 100 | 100 | 20 | 700 | 1.9 |
| Bipolar | Fine | 50 | 100 | 20 | 400 | 1.9 |

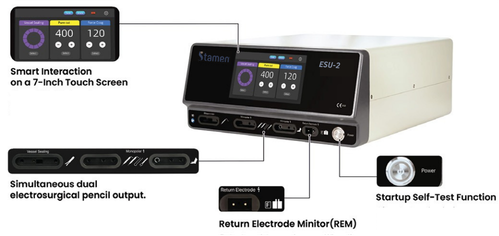

Main Features
Precision Coagulation
Spray, Forced, or Soft modes for optimized thermal bleeding control.
Advanced Monopolar Cutting
Pure, Blend 1, Blend 2, and Blend 3 modes for custom tissue dissection.
Vessel Sealing Function
High-eficiency output to seal large blood vessels up to 7 mm.
Dual Bipolar Channels
Standard and Precise outputs engineered for localized procedures.
Dual Pencil Output
Quick-response controls for high-precision tuning of power & audio levels.
Dual Pencil Output
Simultaneous output for two electrosurgical pencils to streamline procedures.
Advanced Pulse Technology
Precise pulse control to manage cutting depth & limit thermal damage.
Active REM Safeguard
Tracks resistance shifts and cuts power during hazards to prevent burns
Ordering Information

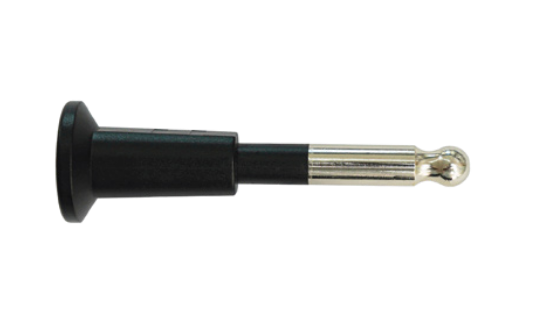

Monopolar Adapter

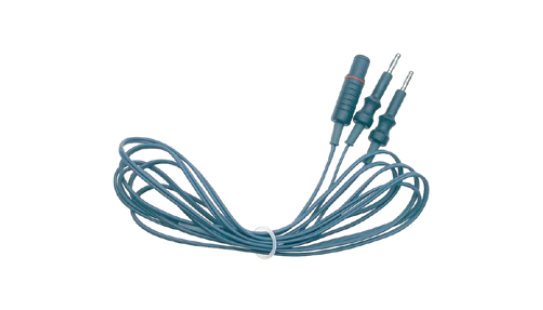

Laparoscopic bipolar high frequency cable

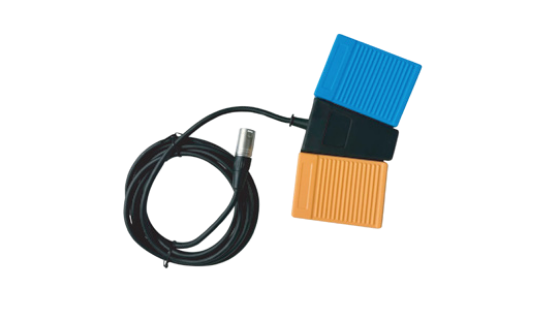

Monopolar Foot-Switch

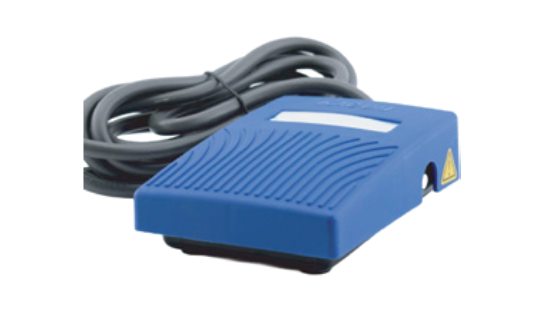

Bipolar Foot-Switch

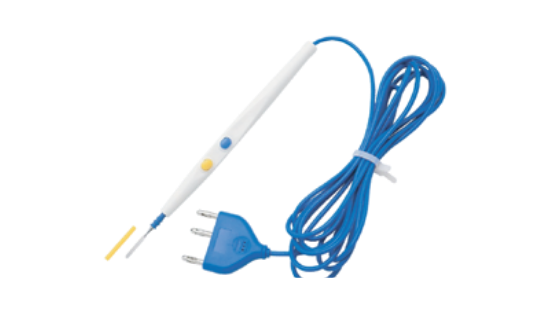

Hand-Switch Pencil, Disposable

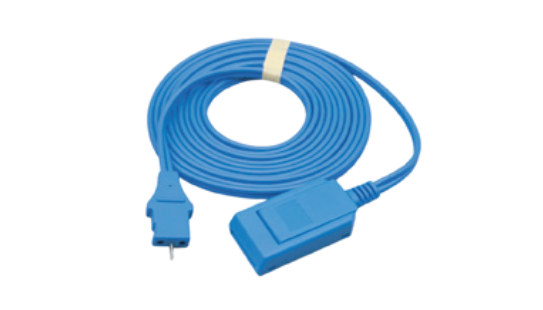

Connecting Cable for Patient Return Eletrode (Split), 3m, Reusable

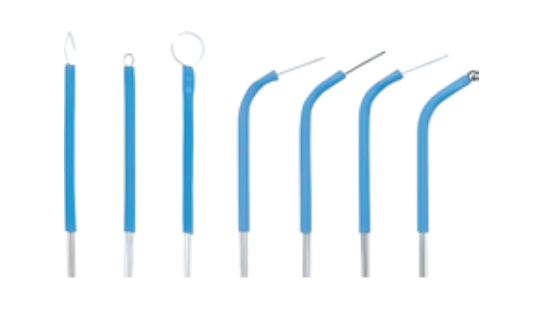

Plastic and Aesthetic Surgery / Dermatology / Oral / Maxillofacial Surgery

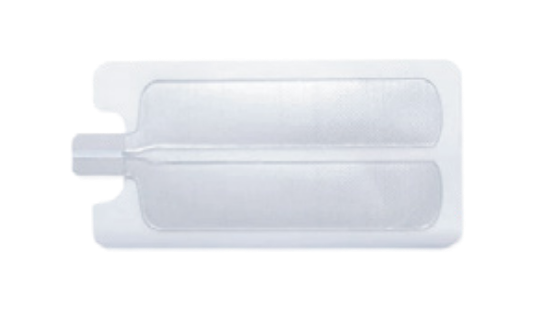

Patient Return Electrode Without Cable, Split, for Adult, Disposable

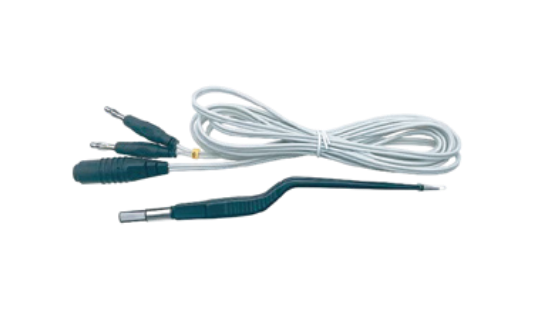

Bipolar Forceps, Reusable, Connecting Cable

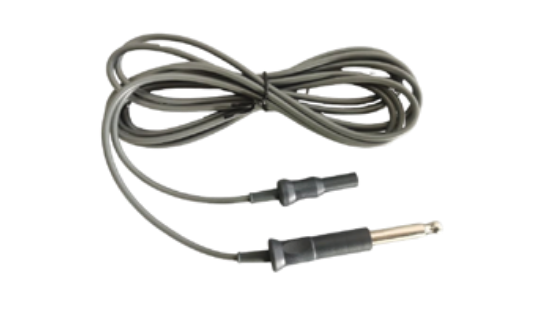

Laparoscopic monopolar high frequency cable
