Description

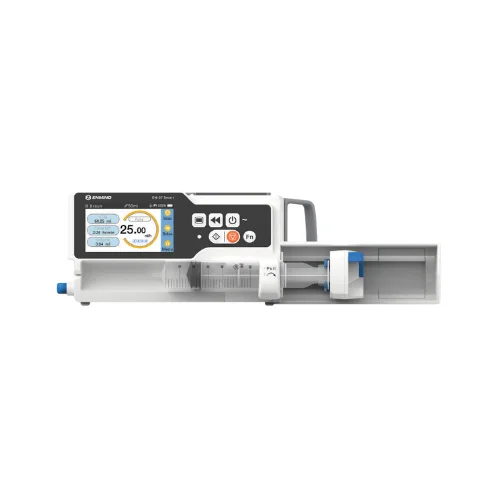

Syringe Pump
SYP-1
Large Screen
4.3 inch color touch screen, displaying all parameters on one screen.
Relay Infusion
It can support relay infusion of multiple pumps and realize continuous infusion.
Accurate Flow Rate
0.01ml / h flow rate, can be used for newborn and adult high-risk drug infusion.
Long Battery Life
The large-capacity lithium battery can last up to 12 hours.
IP24 waterproof
| Basic Parameters | |
|---|---|
| Screen | 4.3 inch LCD color touch screen |
| Syringe Types | 2/3ml, 5ml, 10ml, 20ml, 30ml, 50/60ml Open system, automatic recognition of syringe brands and sizes after calibration |
| Infusion Mode | ml/h (include Rate mode, Time mode), Body weight, TIVA, Loading dose, Ramp up/down, Sequence, Drug Library mode |
| Accuracy | ±2% |
| Flow Rate Range | 0.01-2000ml/h (min. increment 0.01ml/h) |
| VTBI | 0-9999ml |
| KVO | 0.01-5ml/h adjustable |
| Bolus Rate | 0.1-2000ml/h (automatic & manual bolus available) |
| Occlusion Level | 12 levels selectable |
| Interface | USB Type-C |
| Wireless | Wifi (optional) |
| Alarm Type | VTBI Infused, Syringe empty, Pressure high, Battery empty, Check syringe, KVO finished, |
| Dimension | 400(W)*90(D)*120(H) mm (with cover) |
| AC Power | 100V-240V, 50/60Hz |
| External DC Power | 15V |
| Battery | Lithium Polymer battery 11.1V 2600mAh More than 12 hours operating time @ 5ml/h Less than 5 hours for fully charged |
| Special Features | |
| Titration | Change flow rate without stopping infusion |
| Last Therapy | Last therapies can be stored and used for rapid infusion |
| Drug Library | No less than 2000 drugs |
| Anti-Bolus | Automatic drop line pressure to reduce bolus impact after occlusion |
| Purge | Remove the air bubble |
| Screen Lock | Avoid mis operation |
| Standby Mode | Standby time 00-99h59m adjustable |
| Relay Mode | Different pumps work in sequence on infusion workstation (optional) |
| Micro Mode | Limit the max infusion rate to double ensure patient safety |
| DPS | Real-time pressure display in graphically and numerically |
| Brightness and Alarm Volume | Adjustable |
| History Record | More than 5000 entries |
