Description

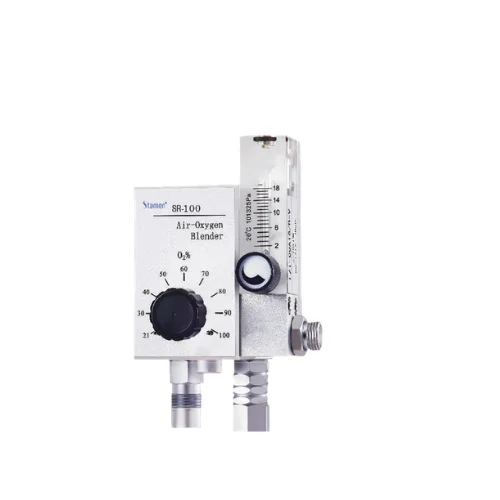

The Stamen SR-100 Air-Oxygen Blender is designed to blend medical air and oxygen to provide an adjustable oxygen concentration. The catalogue lists stable pressure output and optional flow-control configurations.
Key Features
- Adjustable oxygen concentration: 21%–100%
- Oxygen accuracy listed as ±3%
- Optional flow-control ranges listed: 2–18, 3–30 or 6–60 L/min
- Proportioning valve and pressure-stabilising system
- Air-source supply listed as 0.3–0.4 MPa
Applications
Clinical respiratory support configurations where air-oxygen blending is required.
Technical Information
Confirm the selected flow-control configuration and gas-supply requirements before ordering.
