Description

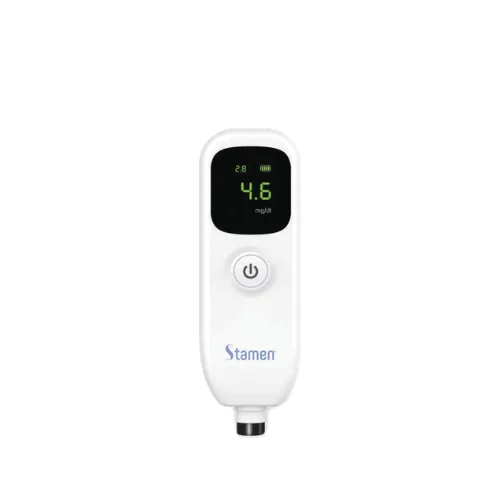

Jaundice Meter
SJ-7
A tool for percutaneous jaundice combines cutting-edge electronics and optical technology.
Smart Connectivity
Features built-in Bluetooth to sync, upload, and view clinical data directly via smartphone.
Clear User Interface
Displays clear measurement data and battery life on a vibrant 1.3-inch TFT color screen.
Advanced Accuracy
Integrates a large sensor with a unique pressure calibration algorithm for precision readings
Dual-Unit Switching
Allows seamless user toggling between standard \ (\mu\text{mol/L}\) and \ \text{mg/dL}\) measurement units.
Ecient Optelectronics
Utilizes an instant-on LED light source with zero warm-up time between measurements.
| Specification | Details |
|---|---|
| Display | 1.3 inch color LCD display |
| Measurement mode | Double wavelength method |
| Measurement range | 0~25mg/dL or 0~425 μmol/l |
| Accuracy | +1mg/dL (0~15.9mg/dL), +1.5mg/dL (16~25mg/dL) |
| Light source | 8pcs of super-bright double-color LED |
| Sensor | 7.5 mm² big area Photo-Diode |
| Power | AA 1.5v*2 Alkaline battery or Li-Ion battery 700mAh |
| Repetition rate | <10% |
Extended Life
Delivers exceptional efficiency with up to 1,000 continuous measurements per full charge
